Using Tailwind CSS with Spring Boot and Thymeleaf

Posted at — Feb 17, 2020

Tailwind CSS is an interesting utility-first CSS framework for rapidly building custom designs. It is perfectly possible to use this in a Java Spring MVC application that uses Thymeleaf for server-side rendering.

Spring Boot project setup

If you haven’t read Spring Boot and Thymeleaf with CSS JavaScript processing using Gulp yet, you might want to do that first, since this blog post builds upon what we did there.

By far the easiest way to start your Spring project is going to https://start.spring.io and generate a project. Select Spring Web and Thymeleaf dependencies. Unzip the generated project and open it in your favorite IDE.

Now we setup Gulp for live reloading:

  • Create a package.json file in the root of the project:

    {
      "name": "thymeleaf-with-tailwind-css",
      "scripts": {
        "watch": "gulp watch",
        "build": "gulp build",
        "build-prod": "gulp build --env production"
      }
    }
  • Install Gulp, Babel and browser-sync:

    npm install --save-dev gulp gulp-watch browser-sync gulp-babel \
    @babel/core @babel/preset-env \
    gulp-terser gulp-uglifycss gulp-environments
  • Update the Maven pom.xml to use the frontend-maven-plugin:

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.2.4.RELEASE</version>
    		<relativePath/> <!-- lookup parent from repository -->
    	</parent>
    	<groupId>com.wimdeblauwe.examples</groupId>
    	<artifactId>thymeleaf-with-tailwind-css</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>thymeleaf-with-tailwind-css</name>
    	<description>Thymeleaf with Tailwind CSS</description>

    	<properties>
    		<java.version>11</java.version>

    		<frontend-maven-plugin.version>1.8.0</frontend-maven-plugin.version>
    		<frontend-maven-plugin.nodeVersion>v12.10.0</frontend-maven-plugin.nodeVersion>
    		<frontend-maven-plugin.npmVersion>6.10.3</frontend-maven-plugin.npmVersion>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-thymeleaf</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

    	<build>
    		<resources>
    			<resource>
    				<directory>src/main/resources</directory>
    				<excludes>
    					<exclude>**/*.html</exclude>
    					<exclude>**/*.css</exclude>
    					<exclude>**/*.js</exclude>
    				</excludes>
    			</resource>
    		</resources>
    		<pluginManagement>
    			<plugins>
    				<plugin>
    					<groupId>com.github.eirslett</groupId>
    					<artifactId>frontend-maven-plugin</artifactId>
    					<version>${frontend-maven-plugin.version}</version>
    					<executions>
    						<execution>
    							<id>install-frontend-tooling</id>
    							<goals>
    								<goal>install-node-and-npm</goal>
    							</goals>
    							<configuration>
    								<nodeVersion>${frontend-maven-plugin.nodeVersion}</nodeVersion>
    								<npmVersion>${frontend-maven-plugin.npmVersion}</npmVersion>
    							</configuration>
    						</execution>
    						<execution>
    							<id>run-gulp-build</id>
    							<goals>
    								<goal>gulp</goal>
    							</goals>
    							<configuration>
    								<arguments>build</arguments>
    							</configuration>
    						</execution>
    					</executions>
    				</plugin>
    			</plugins>
    		</pluginManagement>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    			<plugin>
    				<groupId>com.github.eirslett</groupId>
    				<artifactId>frontend-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>
    	<profiles>
    		<profile>
    			<id>release</id>
    			<build>
    				<plugins>
    					<plugin>
    						<groupId>com.github.eirslett</groupId>
    						<artifactId>frontend-maven-plugin</artifactId>
    						<executions>
    							<execution>
    								<id>run-gulp-build</id>
    								<goals>
    									<goal>gulp</goal>
    								</goals>
    								<configuration>
    									<arguments>build --env production</arguments>
    								</configuration>
    							</execution>
    						</executions>
    					</plugin>
    				</plugins>
    			</build>
    		</profile>
    	</profiles>
    </project>

As an example HTML page, create index.html at src/main/resources/templates:

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org" lang="en">
<head>
    <title>TODO list</title>
</head>
<body>
<h1>TODO list</h1>
<div>
    <th:block th:if="${todos.size() > 0}">
        <ul id="todo-items-list">
            <li th:each="item : ${todos}" th:text="${item.description}">
            </li>
        </ul>
    </th:block>
    <th:block th:if="${todos.empty}">
        <div id="empty-todos-message">There are no todo items</div>
    </th:block>
</div>
</body>
</html>

In order to show our page, we need a controller:

@Controller
@RequestMapping("/")
public class TodoController {
    @GetMapping
    public String list(Model model) {
        model.addAttribute("todos", List.of(new Todo("Install Tailwind CSS"),
                                            new Todo("Make awesome UI")));
        return "index";
    }
}

An our Todo class that is used in the controller:

public class Todo {
    private final String description;

    public Todo(String description) {
        this.description = description;
    }

    public String getDescription() {
        return description;
    }
}

Finally, we also create an application-live.properties file in src/main/resources. This disables the thymeleaf caching so changes to our HTML can be live reloaded while we are editing.

spring.thymeleaf.cache=false

Now start the Spring Boot application using the live profile. In IntelliJ, you can set this in the run configuration:

thymeleaf with tailwind css run config

Next, open a terminal and run:

npm run build
npm run watch

This will automatically open your default browser at http://localhost:3000

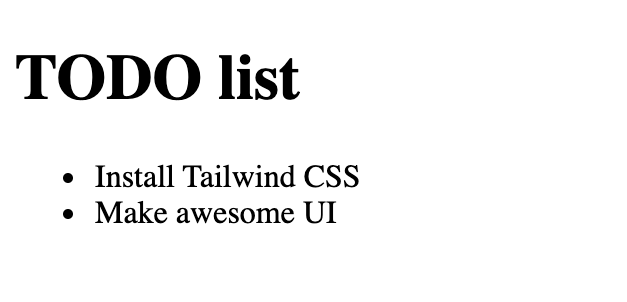

This should look something like this:

thymeleaf with tailwind css default style

This is just the default browser styling of our HTML.

You can now also check to be sure the live reloading works by editing the <h1> title for example to something else. When you save the file change, the browser should reload and show the change.

Adding Tailwind CSS

We will now add Tailwind CSS to our project.

  • Install tailwind CSS:

    npm install tailwindcss
  • Add application.css in the src/main/resources/static/css directory:

    @tailwind  base;

    @tailwind  components;

    @tailwind  utilities;

As a next step, we need to instruct Gulp to process those @tailwind directives in the CSS, so the output is something the browser will understand. We use PostCSS for that.

  • Install gulp-postcss:

    npm install --save-dev gulp-postcss
  • Update the copy-css task in gulpfile.js to use postcss:

    // add this line at the top of the file
    const postcss = require('gulp-postcss');

    ...

    gulp.task('copy-css', () =>
        gulp.src(['src/main/resources/**/*.css'])
            .pipe(postcss([
                require('tailwindcss'),
                require('autoprefixer'),
            ]))
            .pipe(production(uglifycss()))
            .pipe(gulp.dest('target/classes/'))
    );
  • Finally, add a link to application.css in the index.html Thymeleaf template:

    <head>
        <link rel="stylesheet" href="/css/application.css"/>
        <title>TODO list</title>
    </head>

Now check if everything is ok:

  • Run npm run build

  • Start the Java app in IntelliJ (using the live profile)

  • Run npm run watch

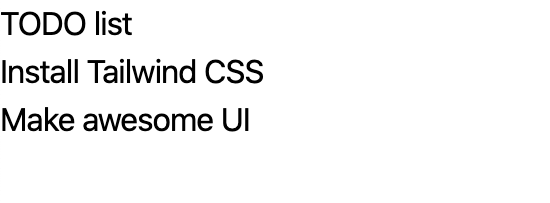

The result should look like this:

thymeleaf with tailwind css default style tailwind

This looks a lot worse than before we applied Tailwind CSS, but no worries, it will look better soon.

Using Tailwind CSS

If you now add the Tailwind CSS classes, you will see that the HTML gets styled. If we change our index.html to this for example:

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org" lang="en">
<head>
    <link rel="stylesheet" href="/css/application.css"/>
    <title>TODO list</title>
</head>
<body>
<div class="bg-white overflow-hidden border-t border-l border-r border-gray-400 p-4 px-3 py-10 bg-gray-200 flex justify-center">
    <div class="w-full max-w-xs">
        <div class="bg-white shadow-md rounded px-8 pt-6 pb-8 mb-4">
            <h1 class="text-2xl text-gray-500 mb-3">TODO list</h1>
            <th:block th:if="${todos.size() > 0}">
                <ul id="todo-items-list" class="list-disc pl-6">
                    <li th:each="item : ${todos}" th:text="${item.description}" class="my-2">
                    </li>
                </ul>
            </th:block>
            <th:block th:if="${todos.empty}">
                <div id="empty-todos-message">There are no todo items</div>
            </th:block>
        </div>
    </div>
</div>
</body>
</html>

Then we get this result:

thymeleaf with tailwind css styled with tailwind

Purging unneeded CSS classes

If you look at the generated application.css, then you’ll see that it is quite big since it contains all possible utility classes. Since we only use a few, we should remove the unused ones if we build for production. We will use purgecss for this:

  • First, install purgecss:

    npm install --save-dev gulp-purgecss
  • Update gulpfile.js:

    // add this line at the top of the file
    const purgecss = require('gulp-purgecss');

    ...

    gulp.task('copy-css', () =>
        gulp.src(['src/main/resources/**/*.css'])
            .pipe(postcss([
                require('tailwindcss'),
                require('autoprefixer'),
            ]))
            .pipe(production(purgecss({ (1)
                content: ['src/main/resources/templates/**/*.html']
            })))
            .pipe(production(uglifycss()))
            .pipe(gulp.dest('target/classes/'))
    );
    1 Add purgecss referring to the location of our HTML templates. We also wrap this with production so the purging only happens if we build for production
/* purgecss start ignore */
@tailwind  base;
@tailwind  components;
/* purgecss end ignore */

@tailwind  utilities;

To test this, run:

npm run build-prod

The resulting application.css in target/classes/static/css will only contain the styles that have been used in our index.html page.

Conclusion

It is perfectly possible to use Tailwind CSS in a Spring Boot project that uses Thymeleaf for server-side rendered HTML.

The full source code is available on GitHub.
